KOBELT - RFM - PRO |
| |

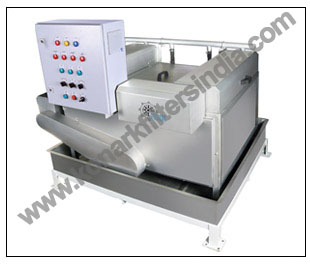

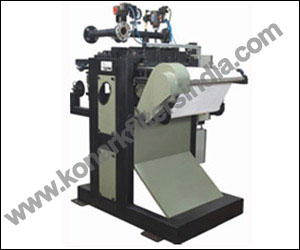

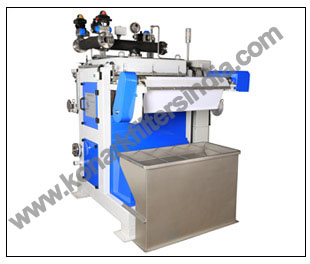

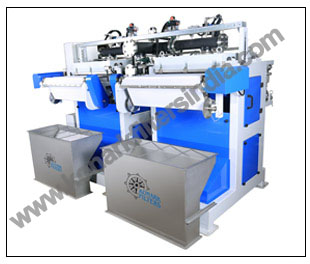

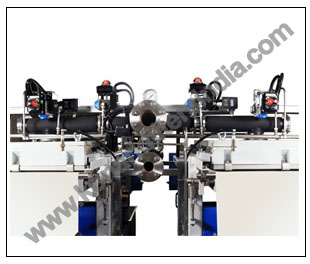

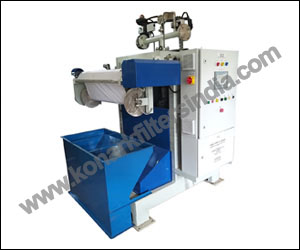

The Versatile Closed Chamber Automatic Filter |
| |
|
|
It is a open and close type pressure belt filter with two chambers and a reusable filter cloth. |
|
Suitable for high porosity non compressible solids. |
|
An Important tool for every industry having solld-Iiquid separation requirement. |
|
Engineering and construction make it highly user friendly and versatile. |
|
|
Salient Features |
| • |
Effective separation and recovery |
• |
Pneumatic or hvdro-pneumatic cake dewatering |
| • |
Closed chamber filtration, cake washing and dewatering |
• |
Reduces exposure of hazardous streams |
| • |
Easy CIP cleaning and quick change over in multiple product applications |
• |
Avoids cross contamination |
| • |
Leakless chamber locking arrangement |
• |

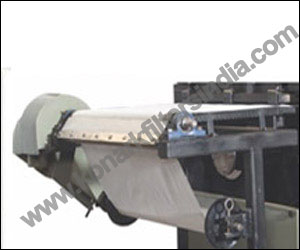

Roll form reusable filter cloth |
| • |
Uniform and horizontal cake formation |
• |
Least 0 & M costs |
| • |
Easy inert gas blanketing |
• |
MOC as per requirement |
| |
|
• |
Other |
|
| |
|
|
| |
|
Operation |
|
The upper chamber is Feed chamber and the lower one is Filtrate chamber. A suitable reusable
filter cloth is operational in between the chambers. Depending upon the configuration, one of the chamber is kept fixed and the other moved up & down. The moving chamber is assisted with
locking arrangement. The operation of filter can be broadly divided into 4 stages. Filtration, cake washing, dewatering and discharge. Additional sequences can be adopted depending upon
requirement |
|
| |
|
|
Filtration : |
| |
| Feed and filtrate chamber are held pressed with each other with reusable filter cloth in between them. Liquid Is fed in the feed chamber. Suspended solids start getting
accumulated on the filter cloth. Clear filtrate passes into the filtrate chamber and flows out. After sufficient build up of cake sensed by pressure switch or the time limit. whichever happens earlier, filtration cycle comes to an end. |
| |
Cake washing : |
| |
Cake wash liquid is fed Into feed chamber for effecting replacement cake washing. Washed liquid can be collected separately. Multiple type cake washing can also be done. |
| |
Dewatering : |
| The formed cake inside the feed chamber is squeezed either pneumatically or
hvdro-pneurnancatlv. All the held up liquid inside chamber and the voids of suspended solids is
removed out and taken for further processing. Hot air can now be fed into the chamber for further
drying of solids. |
| |

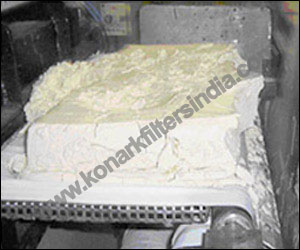

Discharge : |
The locking dts-enqaqas the two chambers.
Drive motor starts to discharge Out the solids.
After complete discharge the two chambers close in again
to start the next cycle. |
|
| |
|
|
| |
|
 |
Applications |
| • |
Valuable chemicals |
| • |
Solvents |
| • |
Hazardous chemicals |
| • |
Multiple product lines |
| • |
R & d and pilot plant applications |
| • |
For ascertaining vario LIS filtration parameters |
| • |
Dynamic, ever changing and confidential product development |
| • |
All industries having filtration unit operation |
|
|
| |
|
|
|
|
|
 |
|
 |
|
| |
|
| |
|
|
|
|
|
|
| |
|
|
|
